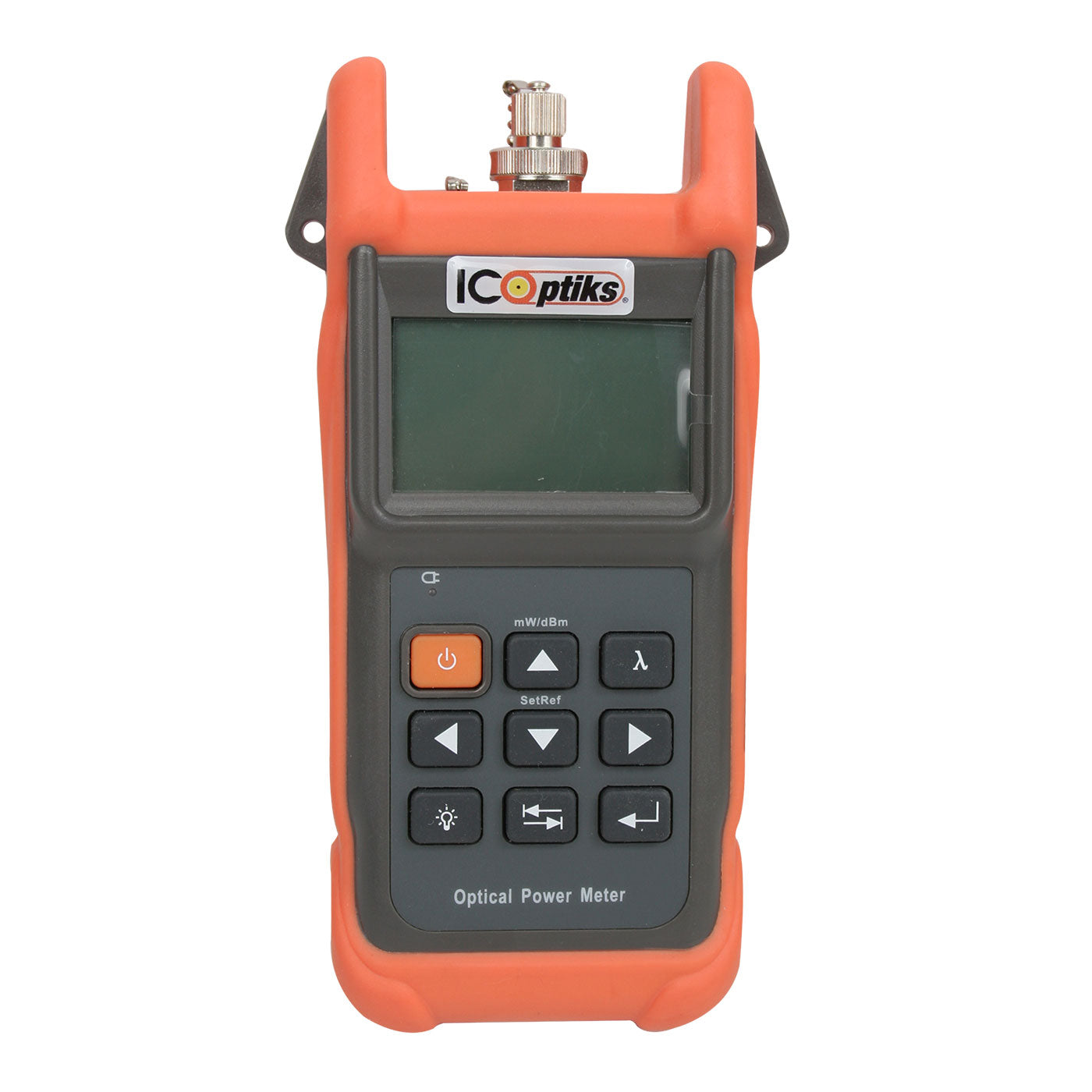

Power Meter 6WL -70 to +10 (FC)

Name: FIBOPMICOICOPM500A ICOPM500A Power Meter 6WL -70 to +10 (FC)
Brand: ICOPTIKS
SKU: FIBOPMICOICOPM500A
Price: 393.69 USD
Availability: InStock

$393.69 USD+ IVA

Precio no incluye IVA

Este producto cuenta con envío incluido en compras mayores a $1,000 MXN

Product variants

Low stock

Quantity

Description:

Automatic power meter, 6 wavelengths from 850 to 1625 nm, measurement range: -70 to +10 dBm, FC coupler

Features:

Automatic wavelength identification
Remote reference value setting
Applicable in FTTx networks
Internal clock and editable fiber numbering
Memory for 1000 records
Data transfer to PC via USB port
USB battery charging
No warm-up, quick start
Backlight
70 hours of continuous operation
Lightweight carrying case
Easy to use
CE FCC certified

Specifications:

Model	A, B
Calibrated Wavelength (1)	850, 1300, 1310, 1490, 1550, 1625nm
Power Range (2)	-70 ~ +10(1) (dBm)
Fiber Type	Single mode / Multimode
Detector Type	InGaAs
Accuracy	±5% ±0.01nW ±5% ±1nW , (±0.5dB@850nm) (±0.5dB@850nm)
Resolution	0.01 dB
Modulation	270, 1K, 2K Hz
Automatic wavelength ID	Yes (with SLS-50)
Units	W/mW/uW/nW/pW/dBm/dB(REF)
Storage	1000 records
Connectivity	USB
Connector(3)	FC (Interchangeable with SC/ST)
Power Supply	Lithium battery / AC adapter
Battery life	Continuous operation: 70 hours, Sleep mode: 140 hours
Power saving	Automatic shutdown after 5 minutes of no operation
