Cladding Alignment Fusion Splicer A3, 150 cycles
$2,595.28 USD + IVA
/
Precio no incluye IVA
El envío de este producto se cotiza al final del proceso de compra.
Sobre pedido con tiempo de espera
El tiempo de entrega puede ser mayor, debido a que será solicitado directo con el proveedor.

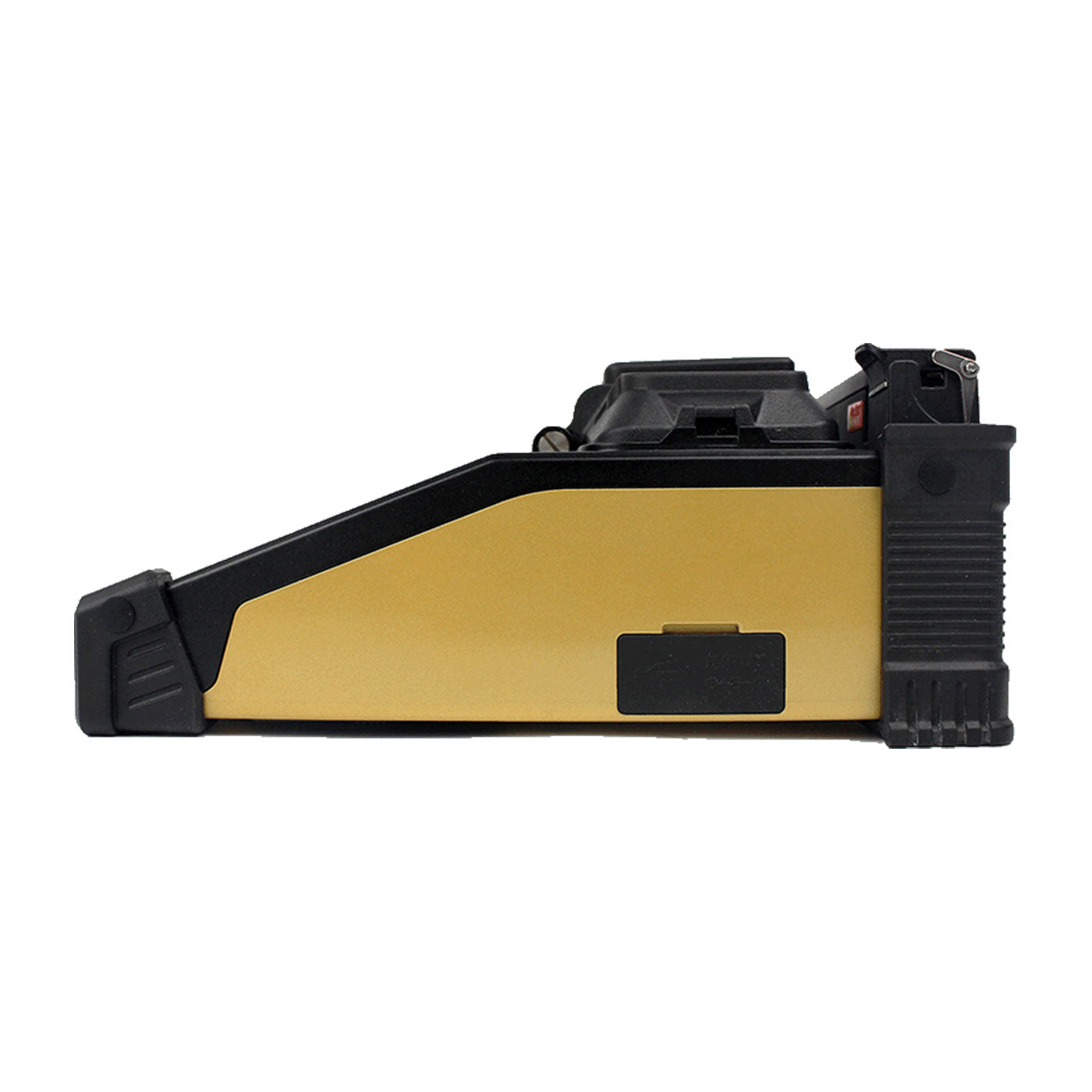

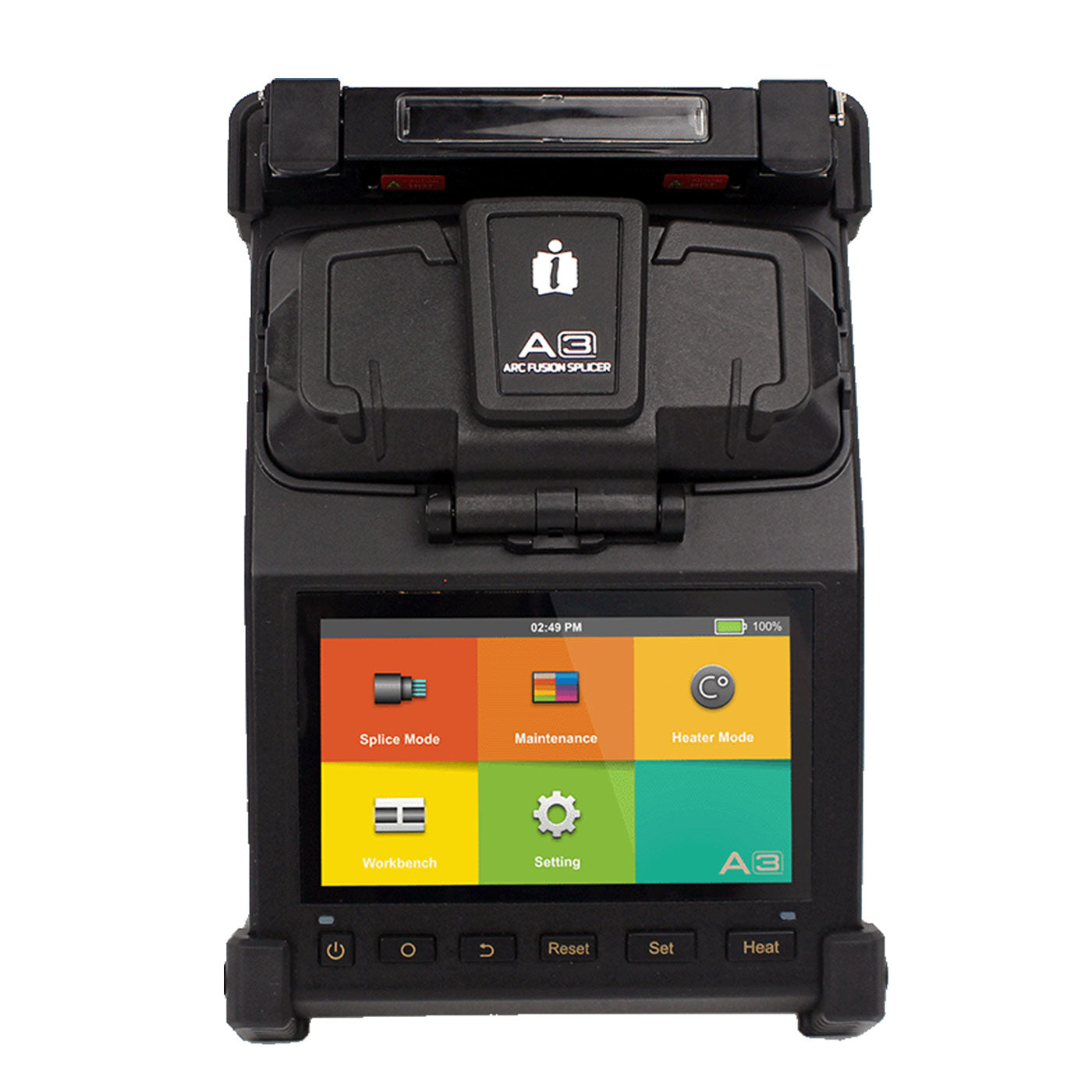

INNO A3 Cladding Alignment Optical Fiber Splicer
The INNO A3 splicer is a compact and reliable tool designed for cladding alignment. Perfect for telecommunications projects, it combines advanced technology, portability, and precision in a robust and easy-to-use design.
The INNO A3 splicer is the choice for professionals who require a precise, robust, and efficient tool for fiber optic projects.
Benefits:
-
Cladding alignment with 4 high-precision motors.
-
4.3-inch LCD touch screen for intuitive operation.
-
Compatible with SM, MM, DS, and NZDS fibers.
-
150 cycle battery for long workdays.
Specifications:
| Number of fibers | Single fiber |
| Fiber types | SM (ITU-T G.652; G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Coating diameter | 100 – 3000 µm |
| Cladding diameter | 80 – 150 µm |
| Cleave length | 5 – 16 mm |
| Typical splice loss | SM:0.03 dB / MM:0.01 dB / DS: 0.05 dB / NZDS:0.05 dB / G.657:0.03 dB |
| Return loss | 60 dB |
| Splicing time (average) | Fast mode 7 s |
| Splicing modes | Preconfigured: 6 / Maximum: 320 available |
| Electrode life | 5,500 arcs |
| Heating modes | 32 |
| Heating time | 15 s (45 mm and 60 mm slim) / 20 s (60 mm standard) |
| Splice sleeve size | 20 – 60 mm |
| Data output | USB-C |
| Splice storage | 10,000 data / 10,000 images |
| Battery | Capacity:3,000 mAh / Operation cycles:150 |
| Power supply | AC input 100-240 V, DC input 9-14 V |
| Zoom | ×120 ~ 240 |
| Views | X, Y, X/Y |
| Dimensions | 197 × 137 × 87 mm |
| Weight | With battery:1.206 kg / Without battery:0.997 kg |
| Tensile test | 1.96 – 2.25 N |
Sales unit: Piece
Presentation/Packaging/Content: Case with 1 piece
