ICOPTIKS

Código: C9A100KHEB048

ADSS fiber optic cable G652D 048 fibers PBTP span 100 m

Sobre pedido con tiempo de espera  
El tiempo de entrega puede ser mayor, debido a que será solicitado directo con el proveedor.

Description:

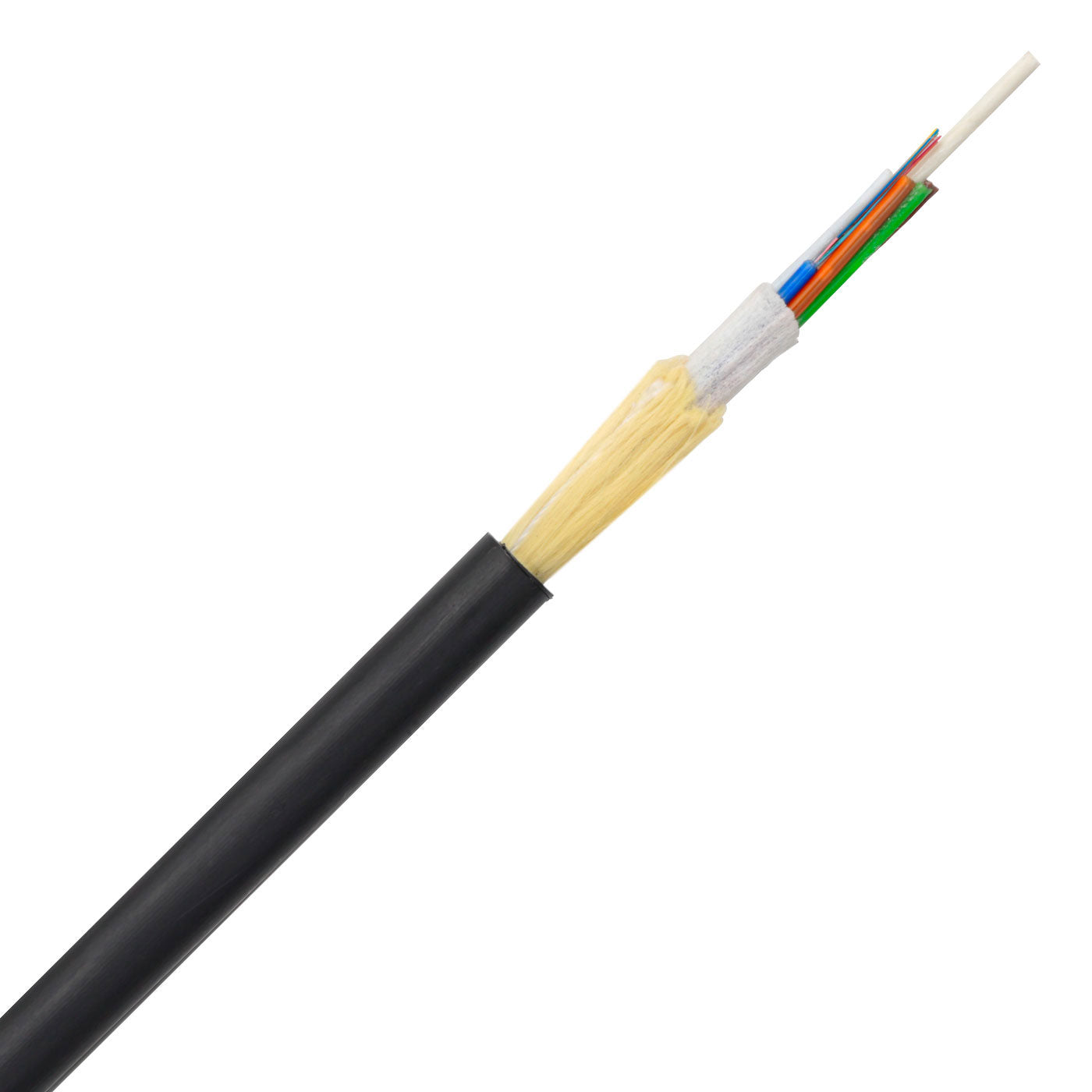

48-fiber single-mode G.652 D (9/125) semi-dry ADSS fiber optic cable, PBTP loose tubes, HDPE jacket, F.R.P. rod and aramid reinforcement, 100-meter span

Features:

  • G.652 D single-mode fiber optic cable for outdoor installation
  • We have various types of cable, such as: ADSS, dielectric, armored, microcable, figure 8, flat cable, and drop cable
  • From 12 to 288 strands
  • Available in other configurations
  • Store and transport correctly to ensure functionality see infographic
  • Learn about the Icoptiks range of cables watch video

Technical data sheet

Specifications:

Cable type:  ADSS
Fiber type:  G.652 D
Number of fibers: 48
Reinforcement:  Aramid
Jacket:  HDPE
Loose tube:  PBTP
Cable diameter:   10 ± 0.5 mm
Cable weight:  75 ± 10 kg/km
Design:  Designed for wind speed of 50km/hr and 1% catenary

Unit of sale:

Meter

Presentation/Packaging/Content:

Reel (footage per reel varies, consult your advisor)
