9/32" Diameter Ball Valve Lockout, Red Metal

Name: SEGBLOBRA51394 51394 9/32" Diameter Ball Valve Lockout, Red Metal
Brand: BRADY
SKU: SEGBLOBRA51394
Price: 75.81 USD
Availability: InStock

$75.81 USD+ IVA

Precio no incluye IVA

Este producto cuenta con envío incluido en compras mayores a $1,000 MXN

Product variants

Low stock

Quantity

Description:

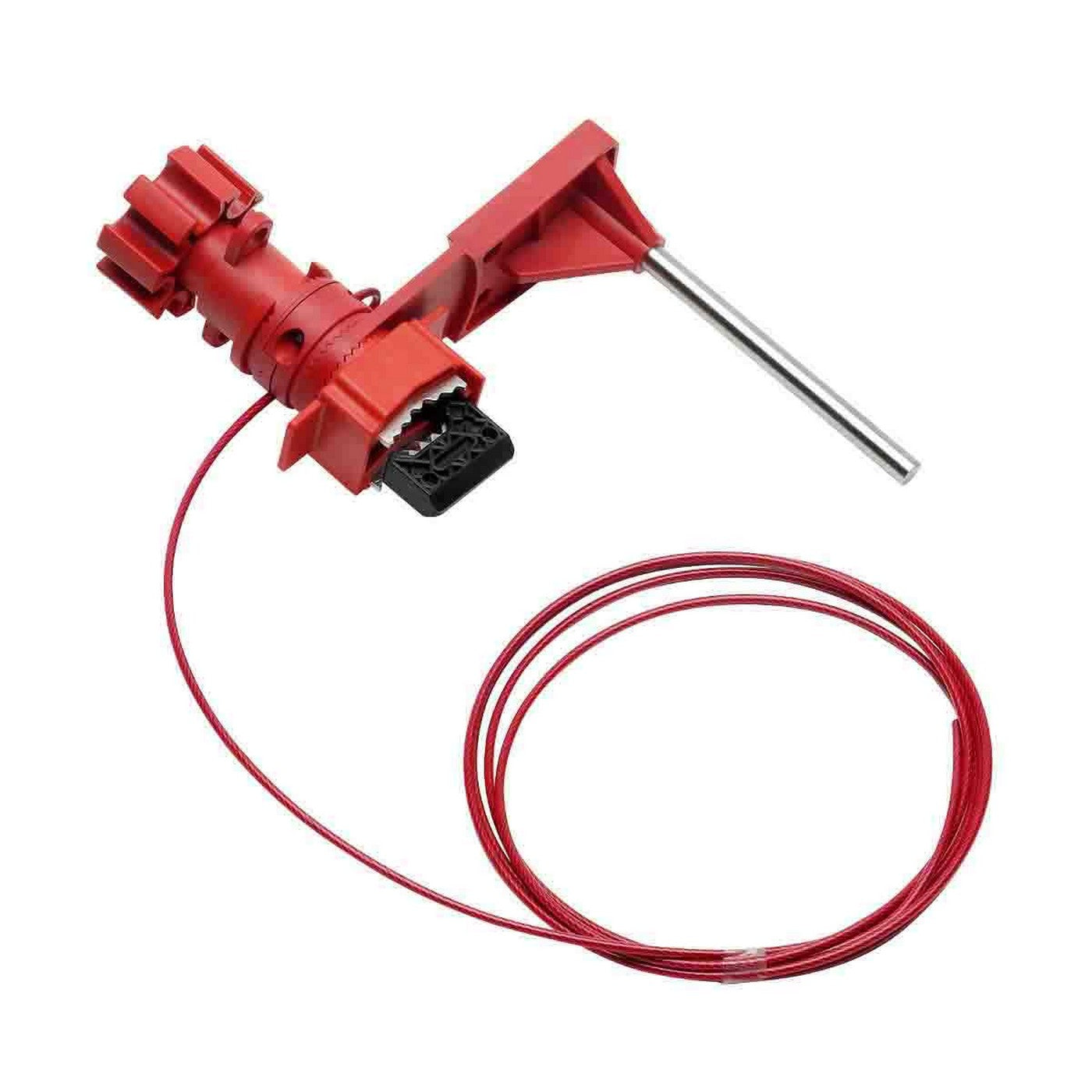

9/32" diameter ball valve lockout, red metal

UPC: 754473513948

Features:

Lock out all types of valves with a single universal device. Brady®'s universal valve lockout system is durable, easy to use, and eliminates the need for multiple devices.

It is made of industrial-grade steel and nylon for greater impact and chemical resistance.
The versatile open-ended clamp fits most closed hoops and wide handles.
The device can also lock large levers, T-handles, and other mechanical devices that are difficult to secure.
The padlock board includes holes for wall mounting.

Specifications

Dimensions	5.60 in H x 6.2 in W
Height (in/ft/yd)	5.60 in
Width (in/ft/yd)	6.2 in
Cable Diameter (in/ft/yd)	0.125 in
Cable Length (in/ft/yd)	8 ft
Locking Arm Size	6.05 in H x 6.2 in W
Brady Material Number	LOTO-24
Material	Stainless Steel, Brass, Glass-filled Nylon
Base Clamping Unit Material	Glass-filled Nylon
Blocking Arm Material	Glass-filled Nylon
Cable Material	Metal
Color	Red
Cable Color	Red
Service Temperature Range °F	-4 °F - 248 °F
Steel Type	Industrial Grade
Applications	Lockout Tagout
Component Type	Cable Attachment
Maximum Number of Padlocks	2
Open or Closed Valve?	Closed
Risk Type	Mechanical Hazard
Maximum Shackle Diameter (in/ft/yd)	0.39 in
Maximum Handle Thickness (in/ft/yd)	0.6 in
Maximum Handle Width (in/ft/yd)	1 in
Wire Diameter Range	0.128 in to 0.128 in
Cable Included?	Yes
